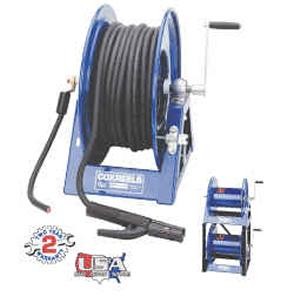

LG Cap.Hand Crank Welding Cable Reel - 12" Width
(Less Cable)

Specifications:

Cable type (Capacity): #2 (500'); #1 (500'); #1/0 (400'); #2/0 (300')

Height: 18-1/2"

Width with handle: 27-3/4"

Depth: 17"

Drum width: 12"

(CABLE NOT INCLUDED)

Coxreels' 1125WCL & 1275W-C Series welding reels offer a solution to organizing and managing long lengths of welding hose and cable. Save time, effort and increase the safety of your operation by investing in a quality reel.

Reel features:
Special narrow width allows for easy installation in space restricted areas.
Electrical components are accessible & secured inside the drum.
Components cover easily removed for maintenance & servicing.
Reels are designed for electrode lead & ground lead applications.
Each lead requires an individual reel. Stack bracket available.
Electrical current runs continuously through a 450 AMP-rated slip ring.
One piece welded steel A frame construction
Easily wraps, stores & protects welding cable improving workplace safety
High-quality steel construction & durable epoxy powder-coat finish.
Self-aligning pillow block precision bearings ensure smooth, precise rotation.
Heavy ribbed steel discs with rolled edges for maximum strength & safety.
Long-handled lock pin secures reel & prevents unwanted rotation when not in use.
Corrosion resistant adjustable tension brake prevents cable backlash when unreeling.
Solid steel crank handle has smooth round tapered handle for comfort.

CAUTION: When using for extended periods of time, unwind all cable from reel to prevent heat build-up.
NOTE: Welding cable and clamp shown sold separately.
