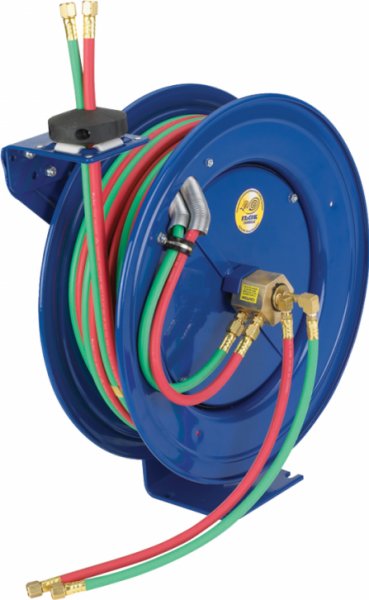

50' Spring Driven Oxygen-Acetylene Dual Welding Hose Reel

Specifications:
Hose I.D.: 1/4"
Hose length: 50'
Hose PSI: 200
Dimensions: 10-7/8"W x 21"H x 19-5/8"LReel features:Patented EZ-Coil Rewind Safety System "Safety yellow" powder coat paint Eight-position spark-free locking ratchet secures reel at desired length Heavy duty solid steel construction Heavy duty 1/4" plate steel support post and mounting plate 1" oil-lite self-lubricating bearing Solid 1" steel center support shaft Brass swivel joint* Adjustable arm guide (wall, floor, ceiling and vehicle mounting) Safe, replaceable cartridge style spring motor Four-roller non-snag hose guide 18" inlet hose assembly standardHose supplied on reel is twin-siamese type meeting R.M.A. and C.G.A. type V.D. grade R specifications. Use of other types of hose is not recommended.Coxreels EZ-PW Series Oxy-acetylene and "T" Grade Hose Reels are spring driven, auto-rewind reels built using the highest quality, heavy gauge materialsEach reel is supplied standard with a spark-free locking ratchet to hold the desired length of hoseWith a minimal pull on the hose, the latch will release and the hose will retract and wind in a steady, controlled motionEZ-Coil Safety Series Reels
Controlled Self-RetractingSpring Driven for Increased Safety
Up to 80% Slower Retraction
Reduce Workplace Accidents
Increased Operator Safety
Durable 'CPC' Powder Coating
