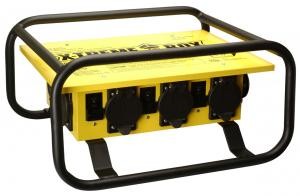

New roll cage version with a stackable design for easy transportation
The new cage is constructed with a tubular steel frame that is tapered on its topside to allow several boxes to be vertically stacked together when being moved from one jobsite to another
The stackable boxes are easier to handle and take up a smaller footprint inside a contractor's vehicle
Enclosure type: NEMA Type 3R, rainproof
Enclosure material: Carbon steel, protected by e-coat and yellow exterior paint finish
Enclosure base: Carbon steel, with black powder coat finish
Receptacle covers: Thermoplastic, on all receptacles
Receptacle cover colors: Black, except for the 30A receptacle cover, which is gray
Power inlet: 50A 125/250V California style twist lock flanged inlet with integral cover
Power outlets:
(1) 50A 125/250V California style twist lock receptacle
(1) NEMA L6-30R 30A 250V twist lock receptacle
(6) NEMA 5-20R 20A 125V straight blade receptacles (01970)
Over-current protection: 50A receptacle - none
30A receptacle - 30A circuit breaker for each ungrounded conductor
20A receptacles - 20A circuit breaker for each receptacle
Ground fault protection: Individual Class A GFCI for each 20A receptacle
Over-voltage protection: Provided by GFCI on each 20A receptacle
NRTL APPROVAL: ETL Listed to UL 1640 and CAN/CSA C22.2 No. 14
