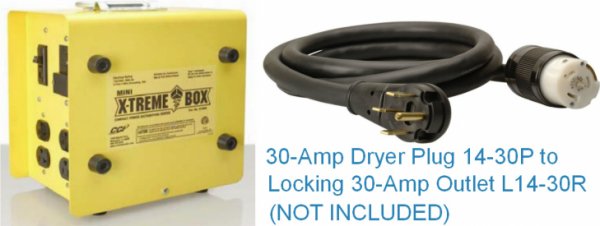

20A CIRCUIT BREAKER ON BOTH ENDS PROTECTS THE UNIT FROM OVERCURRENT125/250V 30A inlet, L14-30P, Twist-to-lock(4) 125V 20A duplex receptacles, NEMA 5-20R(2) Class "A" ground-fault circuit-interrupters (GFCI)(2) Circuit Breakers, Single-Pole 20A
Height: 10"Width: 10"Depth: 6.75"Weight: 10.8 LBS
Max Amps: 30A
Power Specifications: 125/250V 30-Amp 3P4W
Input Connector: 30-Amp 125/250V 3P4W Nema L14-30P
Feed-Thru Connector: 4 x NEMA 125V 20-Amp 5-20 duplex receptacles with dedicated GFCI Protection on 2 circuit breakers
Outputs: 4 x NEMA 125V 20-Amp 5-20 duplex receptacles with dedicated GFCI Protection on 2 circuit breakers
Enclosure material: Carbon steel, with yellow exterior paint finish
"with a 30 amp feed, i would have liked to see 4 20 amp circuits in output"
