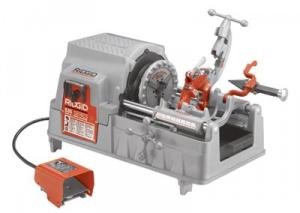

Ridgid Model 535 1/2HP-Power Threading Machine 115V
(54 RPM)

Ridgid 96502 Model 535 1/2HP-Power Threading Machine 115V (54 RPM) Features
Large 1.75 gallon oil tray
100% larger chip tray
Generous top cover for keeping tools and fittings handy
High clearance carriage
Speed chuck with rocker-action jaws centers and grips workpiece instantly
Can be used with geared threaders Models 141 and 161
Uses Models 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads
Length gauge for quick, accurate cut-off
CSA Approved
Approved to UL Standards (NRTLC)Specifications
Pipe Capacity: 1/8" - 2", 2 1/4" - 4" , 4" - 6" with 141 and 161 Geared Threaders
Bolt Capacity: 1/4" -2" (6 mm -50 mm)
Motor: 1/2 HP, single-phase, 115V, 25-60 Hz, 15 Amp Reversible Universal motor.
Switches: FOR/OFF/REV and Integral Safety Foot Switch
Chuck: Speed Chuck with replaceable rocker-action jaw inserts (3)
Rear Centering Device: Cam-action, turns with chuck
Cutters: Self-centering, full-floating - Standard. No. 820 Wheel-Type Cutter, pipe capacity 1/8" - 2" , bolt capacity 1/4" - 1"
Spindle Speed: 54 RPM
Reamer: 5-flute cone, RH, 1/8 "- 2"
Oil Pump: Self-priming gerotor oil pump. RH/LH combination reamer available
