Note: The HC300 is not a hot tapping tool

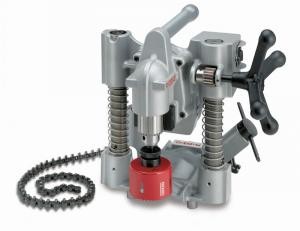

The RIDGID Model HC300 Hole Cutting Tool is designed to cut holes up to 3" diameter into steel pipe. The multiple hole size allows the use of Mechanical T's, Hookers, Vic-O-Lets, Weld-O-Let and other fittings for branching unpressurized pipelines.
The HC300 features a 1/2" capacity chuck to accommodate all sizes of holes up to 3" diameter and standard hole saw arbors up to 7/16" Hex (1/2" chuck size). An integral motor and gear reduction optimizes the performance and saw life in the capacity range. A single-feed handle and ON/OFF switch allows for easy operation. The compact two-piece design allows the HC300 to be used in tight quarters and difficult-to-reach locations.
The Model HC300 offers great features that translate into unparalleled field and shop performance.
Features:
Quick Connecting Two-piece Design
This unique design allows for easy mounting, transport and set up
In addition, weighing only 31 lbs., the unit can be broken down into two lighter weight units for maximum transport and operation comfort
This is particularly useful when working off a ladder or overhead
Single-hand Chain Latching
The Model HC300 features a patented springloaded chain that saves time and significantly aids set up and operation
Ergonomic Design
With all controls at the operator's fingertips, the tool has been designed for maximum productivity
High Speed
With a powerful 1.2HP, 11 amp motor, the Model HC300 delivers 360 RPM to quickly bore holes while optimizing hole saw life
Horizontal and vertical flats to ensure perpendicular cutting
Specifications:
Motor: Universal, 110V or 230V 25-60Hz 11 amp, 1.2 HP, UL/CSA listed
RPM: 360 (no load)
Hole Cutting Capacity: up to 3"
Chuck Size: 1/16"- 1/2"
Pipe Diameter Mounting Range: 1 1/2" - 8"
Weight: 31 lbs
Height: 12.8"
Length: 11.9"
Width: 13.2"
Standard Equipment:
One (1) Hole Cutting Tool (Base and Motor Assembly)
One (1) Chuck Key
Accessories:
Hole Saws
R2S Solid Shank Arbor
Carrying Case
)
