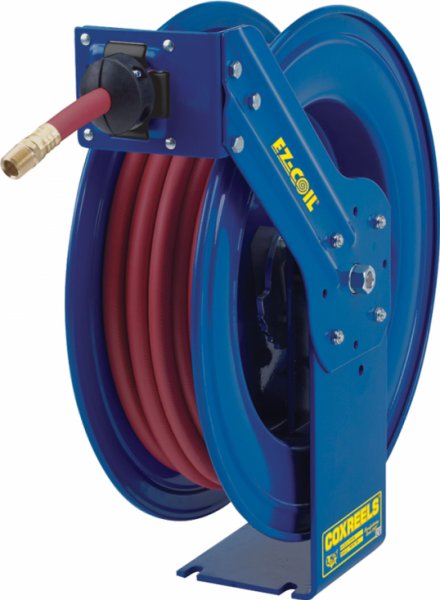

1/2" Spring Driven Low PressureHose Reel w/50' Hose

Hose I.D.: 1/2"
Hose O.D.: 21/32"
Hose length: 50'
Hose PSI: 300 Reel features:
Patented EZ-Coil Rewind Safety System
"Safety yellow" powder coat paint
Eight-position locking ratchet with non-corrosive stainless steel lock dog and spring secures reel at desired length
Heavy duty 1/4" plate steel support post and mounting plate
Double support points to the center shaft
1" oil-lite self-lubricating bearing
Solid 1" steel center support shaft
Full flow swivel joint
Adjustable arm guide (wall, floor, ceiling and pit)
Safe, replaceable cartridge style spring motor
Four-roller non-snag hose guideThe standard hose is for air or water service only. Maximum temperature 150 degrees Fahrenheit.The EZ-Coil Rewind Safety System is a patented technology exclusively researched and designed by the Engineering Department at Coxreels. The EZ-Coil Rewind Safety System controls and eliminates the high-speed recoil associated with conventional spring driven reels. The uni-directional design, like a clutch, does not increase the resistance when pulling out the hose. Years of research and design went in to producing, what is to quickly become the industry choice in spring driven hose, cord and cable reel safety and technology.SAFETY - The slower, controlled rewind action greatly increases operator safety, as well as the safety of the people and property in the surrounding area, by eliminating the high speed whipping action that results from a conventional spring driven reel. It is the most affordable and cost-effective solution in preventing personal injury and destruction of property caused by careless operation of spring driven reels in the workplace.MAINTENANCE - It is commonly known that hose, cord and cable reels are perfect for increasing the efficiency and general safety in your workplace by keeping those messy, tangled hoses neat and tidy. Hose reels equipped with EZ-Coil work even harder, extending the life of your hose, hose reel and its components. Moving parts such as the spring motor, swivel, bearings, and hose roller guides are protected from the slamming action that results at the end of the recoiling cycle. Expensive pneumatic, hydraulic and electric tools are also protected against accidents such as dropping the tool and/or not engaging the lock mechanism properly.TECHNICAL INFORMATION - The EZ-Coil Rewind Safety System is a self-sufficient unit that requires no electricity. With no power supply needed, the operator enjoys complete freedom of mobility with their application.Coxreels EZ-SH, MP & HP Series Reels are high quality, heavy duty hose reels built to outlast the toughest working environments. Double support points to the center shaft increase stability and smooth rotation. Each reel is supplied standard with a locking ratchet to hold the desired length of hose tension free. With a minimal pull on the hose, the latch will release and the hose will retract and wind in a steady, controlled motion.EZ-Coil Safety Series Reels
Controlled Self-RetractingSpring Driven for Increased Safety
Up to 80% Slower Retraction
Reduce Workplace Accidents
Increased Operator Safety
Durable 'CPC' Powder Coating
