Lufkin Gauging Tapes (SAE & Metric)

Lufkin Gauging Tapes
(SAE & Metric)

by Lufkin - Cooper Hand Tools
Item#: LFKNTAPES
Please select an item below.

Shipping Cost

Delivery Method
Calculate

Product Description

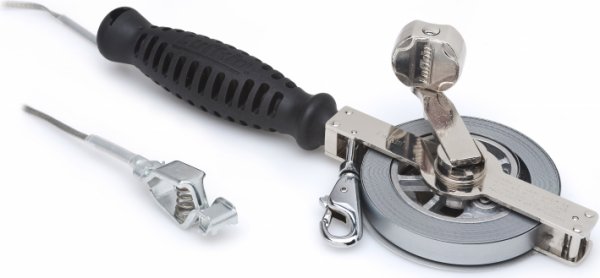

Below are Lufkin's Atlas model Double Duty gauging tape with both Chrome Clad and Nubian (black) for dark (heavy) and light (clear) oils in SAE graduations. Chrome Clad for dark (heavy oils). Nubian for light (clear oils). Made of heavy gauge 1/2 (13mm) x .012 (0.3mm) steel. Snap-swivel hook on front end of tape for a plumb bob. Two arm frames for shorter lengths; four arm frames for 30m/100 and greater. Large drums and winding handles for quick and easy rewinding. Handle folds over for storage and to lock line at extended position. All frames include a grounding strap. Plumb bob must be ordered separately. All blades are "INAGE" blades (meaning how much fluid is in the tank), unless otherwise indicated as an "OUTAGE" blade (ie space remaining).
Add to Cart »

      Qty
Lufkin CN1290 style w/SAE Graduations (i.e. Ft/inch)
1/2"x18' w/ D1 Blade ( $130.40 )
1/2"x50' w/ D1 Blade (for use w/Outage Plumb Bob)-SPECIAL ORDER ( $251.73 )
1/2"x66' double-duty OUTAGE Blade ( $300.60 )

Below are Lufkin's Atlas model Double Duty gauging tape with both Chrome Clad and Nubian (black) for dark (heavy) and light (clear) oils in Metric graduations. . Chrome Clad for dark (heavy oils). Nubian for light (clear oils). Made of heavy gauge 1/2 (13mm) x .012 (0.3mm) steel. Snap-swivel hook on front end of tape for a plumb bob. Two arm frames for shorter lengths; four arm frames for 30m/100 and greater. Large drums and winding handles for quick and easy rewinding. Handle folds over for storage and to lock line at extended position. All frames include a grounding strap. Plumb bob must be ordered separately. All blades are "INAGE" blades (meaning how much fluid is in the tank), unless otherwise indicated as an "OUTAGE" blade (ie space remaining).
Add to Cart »

      Qty
Lufkin CN1290 style w/Metric Graduations
1/2"(13MM)x25'(8M) w/ D3 Blade ( $175.77 )
1/2"(13MM)x50'(15M) w/ D3 Blade ( $283.99 )
1/2"(13MM)x100'(30M) w/ D3 Blade ( $292.03 )
1/2"(13MM)x125'(38M) w/ D3 Blade ( $328.99 )

These are the replacement tapes for the Double Duty SAE & Metric Lufkin tapes listed above
Add to Cart »

      Qty
Lufkin Replacement Tapes for CN1290 Series
1/2" x 18' Tape Refill (D1 Blade) ( $80.71 )
1/2" x 25' Tape Refill (D1 Blade) ( $88.37 )
1/2" x 33' Tape Refill (D1 Blade) ( $107.46 )
1/2" x 50' Tape Refill (D1 Blade) ( $83.41 )
1/2" x 66' Tape Refill (D1 Blade) ( $112.87 )
1/2" x 75' Tape Refill (D1 Blade) ( $209.78 )
1/2" x 100' Tape Refill (D1 Blade) ( $283.41 )
1/2"(13MM)x50'(15M) Tape Refill (D3 Blade) ( $128.49 )
1/2"(13MM)x66'(20M) Tape Refill (D3 Blade) ( $152.23 )
1/2"(13MM)x100'(30M) Tape Refill (D3 Blade) ( $321.63 )

Derrick style oil gauging tape. Chrome Clad blade. Nominal blade thickness .019. Extra large winding drum provides rapid line recovery and permits tape line to be easily detached from reel. Special hook ring with ribbed face at zero. Leather thong is provided to use through eye at rear when tape is removed from reel
      Qty
Lufkin Derrick Oil Gauging Tapes & Replacement Blades
1/4"(6MM) x 100'(30M) Derrick Tape Refill (E2 Blade) ( $356.39 )

Below are Lufkin's Atlas model Chrome Clad for dark (heavy oils) gauging tape. Made of heavy gauge 1/2 (13mm) x .012 (0.3mm) steel. Snap-swivel hook on front end of tape for a plumb bob. Two arm frames for shorter lengths; four arm frames for 30m/100 and greater. Large drums and winding handles for quick and easy rewinding. Handle folds over for storage and to lock line at extended position. All frames include a grounding strap. Plumb bob must be ordered separately. All blades are "INAGE" blades (meaning how much fluid is in the tank), unless otherwise indicated as an "OUTAGE" blade (ie space remaining).
      Qty
Lufkin Chrome Clad style Oil Gauging Tapes
3/8" x 200' Tape (E3 Blade) ( $425.90 )
3/8" x 50' Tape (B5 Blade) ( $79.62 )
Total: $0.00


More Information

Gauging tapes are used to drop a line down large tanks and measure fluid remaining or unused space available.

Lufkin's gauging tape, also called Oil Gauging Tape, is the reference standard in gauging tapes. Each comes with a grounding wire and heavy duty frame. Lufkins are propular because they're rugged, comfortable to use, and rollup fast. They use a plastic easy grip handle and solid metal crank that just feels good in your hand. The crank handle provides a lot of surface for the thumb and index finger and the frame just feels balanced. You can fold the crank over to lock the blade... which makes freezing the rollout a little easier.

In general the accuracy is +/- 0.01% of the overall length or .125” on a 100’ blade (though measurements MUST be taken under the specific temperature conditions described in the API specs).  All Lufkin gauging tapes  conform to both Mil Spec. # A-A-52216 and the American Petroleum Institute Standard 2545.  American Petroleum Institute (API) Chapter 3, section 1A and almost all have a grounding strap on the handle.

NIST Certification available

Warranty Information

Cooper Hand Tools is a manufacturer and marketer of premium quality hand tool, chain, and specialty products for the industrial, commercial, and consumer markets. Cooper Hand Tools brands and products are recognized worldwide, and include many market leaders, such as Campbell® chain, Crescent® brand adjustable wrenches, Nicholson® files, Weller® soldering products, and Wiss® snips.

Lufkin - Cooper Hand Tools 9193627540
