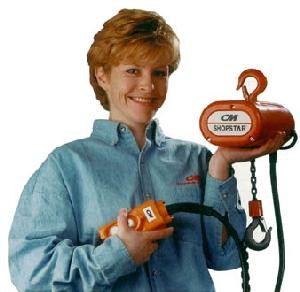

CM Hoists 300-Lbs ShopStar Electric Chain Hoist
(20' Lift)

Columbus McKinnon - CM Hoists 2004 300-Lbs ShopStar Electric Chain Hoist (20' Lift). The ShopStar electric chain hoist features rugged construction and high H4 duty cycle. It keeps lifting and lifting, up to 600 pounds and 300 motor starts per hour. Additional features and benefits include: H4 duty cycle (300 motor starts/hour). Easy installation and maintenance. Standard protector overload device. 10 pocket oblique lay liftwheel provides longer chain wear. Epoxy powder coat finish. 6-1?2 ft. power cord with molded 3 prong plug. NEMA 12 industrial rated control station. Gear train lifetime lubricated with non-oxidizing grease. Thermally protected hoist duty motor. Dual braking system — D.C. plus regenerative. Rugged cast aluminum alloy hoist frame. 5:1 design factor. Small, compact design for commercial & industrial applications. Rigid hook suspension prevents tangling of power cord. Hardened forged steel latch style lower hook rotates 360. Totally enclosed non-ventilated hoist frame protects motor from environmental contamination. True vertical lift. Precision bearings used throughout hoist. Lifetime warranty. Metric rated. Made in U.S.A. Specifications: Voltage: 115-1-60, Max capacity: 300 lbs, Lifting speed FPM: 16, Motor: 1/6 HP.
