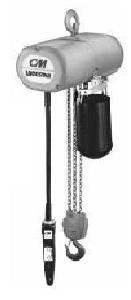

CM Hoists 3-Ton Lodestar Electric Chain Hoist 1-Speed
(20' Lift)

Columbus McKinnon - CM Hoists 9503 3-Ton Lodestar Electric Chain Hoist 1-SpeedSpecifications:
Speeds: One speed
Standard lift: 20'
Lift speed: 5.5 FPM
Motor: 1 HP
Model: RT
Reeving: 3
Voltage: 115-1-60The balanced, integrated, proven design of the Lodestar has made it the most popular electric chain hoist in the industryLodestar gives you more value for your money including: Up to 3 ton capacities for heavy-duty industrial applications
Gear train lifetime lubricated with non-oxidizing grease
Precision machined and hardened liftwheel with hardened chain guides for precise chain liftwheel fit Gearing designed for exceptionally long life and quiet operation
H4 duty standard
Rugged control station (NEMA 4). Hoist has heavy duty motor, standard Protector overload device and standard screw type limit switches
Hardened, forged steel, latch type hooks and Hoistalloy load chain for long, dependable service
Easy to install and maintain
No special tools required to disassemble
High reliability and long life Designed for greater productivity, efficiency and economy
Lifetime warranty
Each hoist thoroughly inspected and tested to over 125% of rated load prior to shipment
Meets ASME B30.16
Metric rated
Made in U.S.A.
Special applications: Harsh environment hoists available for severe duty of plating, galvanizing and washdown applications
Hoists with climbing capability available for temporary rigging or lifting applications — must be used in inverted position only
Hoists with creep control allow precise positioning through field adjustment within the time delay range of .05 sec. to 3 sec.
Articulating suspension 3 ton only
