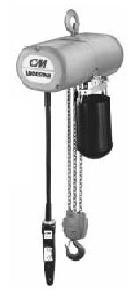

CM Hoists 3-Ton Lodestar Electric Chain Hoist 1-Speed
(15' Lift)

Columbus McKinnon - CM Hoists 9502 3-Ton Lodestar Electric Chain Hoist 1-Speed. The balanced, integrated, proven design of the Lodestar has made it the most popular electric chain hoist in the industry. Lodestar gives you more value for your money including: Up to 3 ton capacities for heavy-duty industrial applications. Gear train lifetime lubricated with non-oxidizing grease. Precision machined and hardened liftwheel with hardened chain guides for precise chain liftwheel fit. Gearing designed for exceptionally long life and quiet operation. H4 duty standard. Rugged control station (NEMA 4). Hoist duty motor, standard Protector overload device and standard screw type limit switches. Hardened, forged steel, latch type hooks and Hoistaloy load chain for long, dependable service. Easy to install and maintain. No special tools required to disassemble. High reliability and long life. Designed for greater productivity, efficiency and economy. Lifetime warranty. Each hoist thoroughly inspected and tested to over 125% of rated load prior to shipment. Meets ASME B30.16. Metric rated. Made in U.S.A. Special applications: Harsh environment hoists available for severe duty of plating, galvanizing and washdown applications. Hoists with climbing capability available for temporary rigging or lifting applications — must be used in inverted position only. Hoists with creep control allow precise positioning through field adjustment within the time delay range of .05 sec. to 3 sec. Articulating suspension 3 ton only. Specifications: Speeds: One speed, Standard lift: 15', Lift speed: 5.5 FPM, Motor: 1 HP, Model: RT, Reeving: 3, Voltage: 115-1-60.
