Adjustable from 6’ to 11’ in Height with 4’ and 11’ Spans Between the Feet at
Minimum and Maximum Height
Cast Aluminum Head has an Integral Stainless Steel Pully to Accommodate
a Winch or an SRL
Cast Aluminum Head also has Three Alloy-Steel Hangers to Allow for the Mounting
of Additional Pulleys or Equipment
Telescoping Legs Constructed from Tubular Aluminum Extrusion
Cast Aluminum Feet have Rubber Treads for Secure Placement and a Ratcheting
Web Strap for Additonal Security
Meets the Requirements of OSHA 1926 and ANSI Z359-1.1992(R1999)

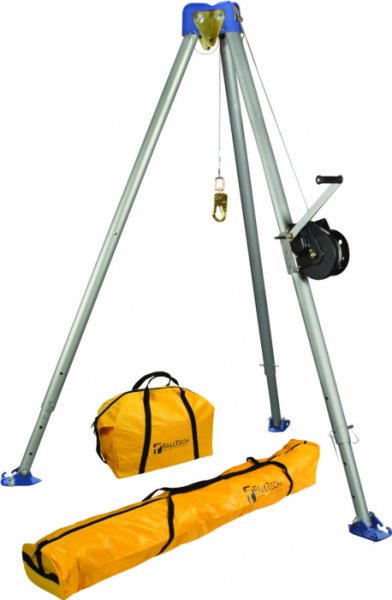

Contains tripod, 60’winch and mounting bracket
Also includes tripod bag and equipment bag for storage and transport.
•#7275 Tripod is adjustable from 6’ to 11’ in height, is constructed with rugged, light-weight aluminum and features and integral stainless steel pulley
•#7290 60’ winch features 3/16” galvanized steel cable, a double-locking swivel snap hook and is fully rated for personnel and equipment
•#7280 and #7282 bags are constructed with reinforced nylon fabric and are highly resistant to weather, tears and abrasion
•Meets the requirements of OSHA 1926 and ANSI Z359
