NOTE: SPECIAL ORDER - Direct ship from Ingersoll Rand

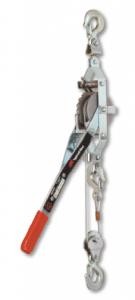

NOTE: Picture shown is Model P15D3HA - Double Line Model with Pulley on End
Theyll pull 1,000 lbs. all day, no problem and no hard work for you, either. Extremely strong and well-made, the Ingersoll-Rand P-Series are high quality, dependable wire rope pullers for low- and mediumduty pulling and lifting jobs.
Made for superior strength, with a steel frame and handle alloy steel load hook, one-piece cast aluminum drum, and solid steel drive and holding dog.
4:1 design factor for lifting.
Long-lasting gears through I.R.s extra heavy "Buttress Tooth" design.
Rated capacity: 1,000 lbs
Number Lines: Single
Minimum distance between hooks: 19-1/2"
Lifting distance: 15'
Cable diameter: 3/16"
Number of hooks: 2
Meets ASME B30.21
Handle and frame are heavy gauge steel with rivet construction and slip-resistant grip.
All steel parts are plated for years of useful life.
Exclusive long life "buttress tooth" cast gear design has no laminated plates to separate or wear and provides maximum strength.
Sturdy steel drive and holding pawls have long life, stainless steel springs.
All pivot points are hardened steel.
Safety latch hooks are drop forged steel, heat treated and plated for corrosion resistance.
Top hook rotates 360 degrees for easy operation.
Galvanized aircraft quality wire rope is preformed to prevent kinks.
One year warranty.
)
