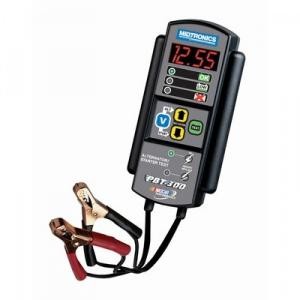

Midtronics PBT-300 Diagnostic Battery Conductance/Electrical System Tester
The PBT-300 represents the latest in the PBT series of battery and electrical system testers designed for the professional technician
The PBT-300 offers the proven features of the industry favorite PBT-100 and PBT-200 with more!
Expanded Test Range and Electrical System Diagnostics!
The PBT-300 brings even more of the power of Midtronics battery and electrical system testing technology from the show to the palm of the technician's hand
An expanded test range enhances the utility of the PBT-300 and electrical system diagnostics make troubleshooting even easier than before!
Features:
Expanded test range for more applications: from compact cars to large SUVs and small trucks
Electrical system state-of-health given in seconds by decision LEDs
High/low voltage capture for additional troubleshooting/diagnostics
Warranty: Midtronics standard one-year warranty
Applications: Automotive/light truck battery and electrical system diagnostics
Battery Test Technology: Conductance Technology
Operating Range:
100-1400 CCA
100-1400 SAE
100-800 DIN
100-800 IEC
100-800 EN
Power Requirements: Powered by battery under test
Voltage Range: 8 - 17 Volt DC
Display:
3 position LED voltage readout
3 LEDs to indicate battery test results
2 LEDs to indicate electrical system test results
Operating Temperature: 0 to 120 F/-18 to 50 C
.
Housing Material: Acid/impact resistant ABS
Product Dimensions: 7.5 in X 3.5 in. X 2.0 in (230 mm X 102 mm X 65 mm)
Product Weight: 17 oz
.
Product Software:
Software not available
